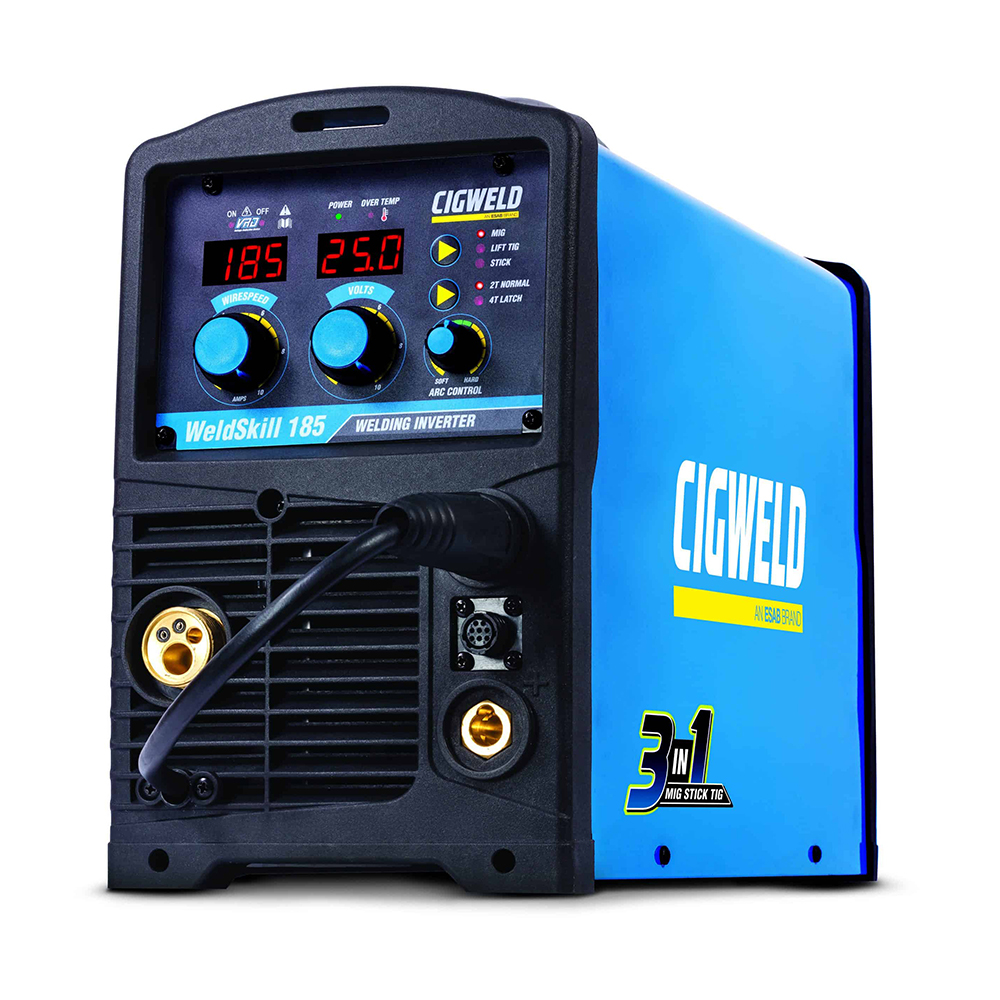

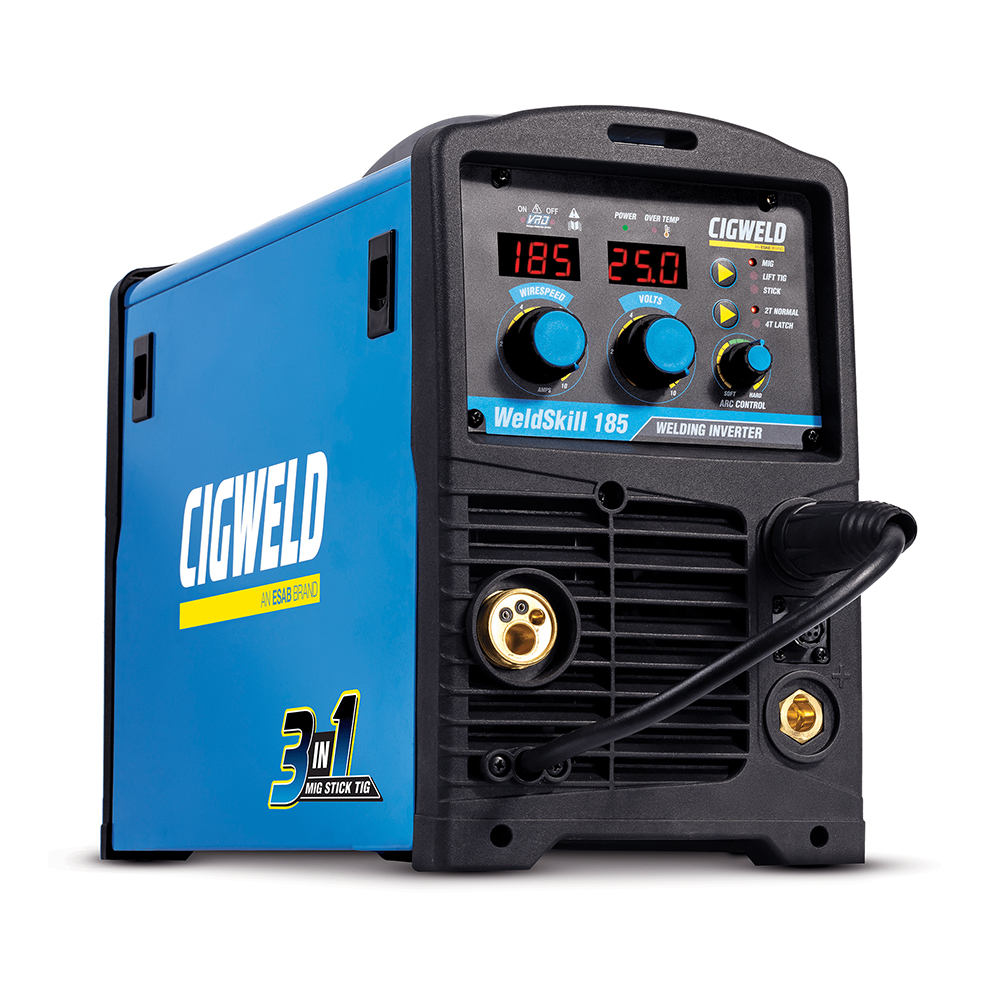

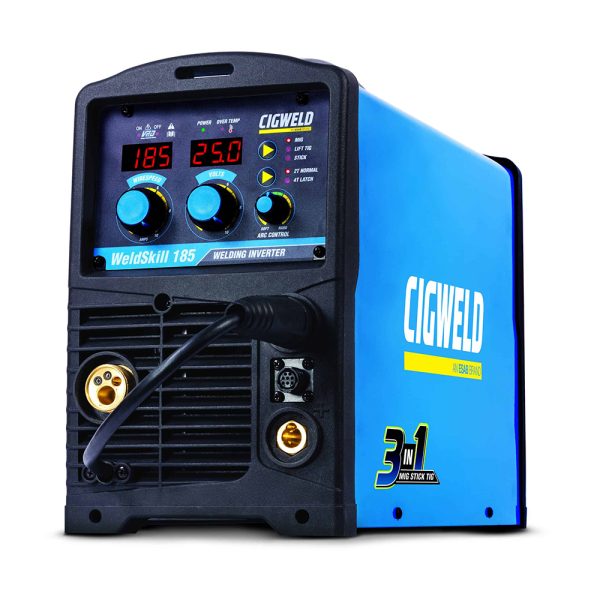

Cigweld Weldskill 185 Mig Inverter 240v/10amp

SKU W1008185 Categories ,



The WeldSkill 185 offers the many benefits of a professional welding machine in a compact, portable, easy to use and affordable self-contained single phase welding inverter. Ideal for welders who want to do light fabrication, maintenance and repairs or DIY around the home without compromising on quality or safety.
Capable of performing MIG (FCAW/GMAW), Stick (MMAW) and Lift TIG (GTAW) welding processes, the WeldSkill 185 is backed by a 2-year warranty and fitted with a 10 Amp plug, meaning you can plug it into any standard 10amp power point and get welding!

• MIG, STICK, TIG Welding Inverter
• Plug & Play – runs on any 10 Amp power point
• Digital Amperage and Voltage Meters
• SGT250 Spool Gun Compatible
• Designed specifically for the home handyman/tradesman
• 2-Year Warranty

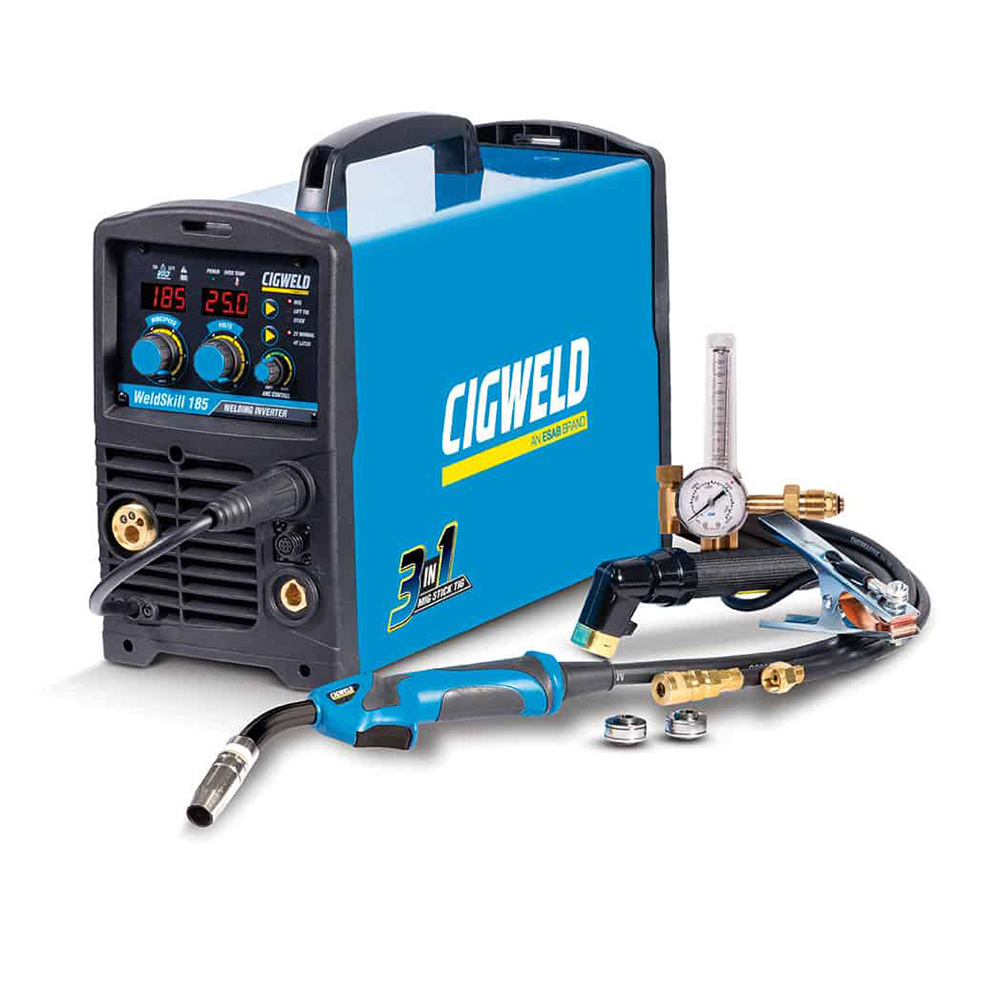

• WeldSkill 185 Power Source (13.7kg)
• E-180 MIG Torch with Euro Connection, 3m
• Twistlock Electrode Holder with 3m Lead
• CutSkill Argon Regulator/Flowmeter
• Work Clamp with 3m Lead
• Shielding Gas Hose Assembly, 3m
• Feed Rolls: 0.8/0.9mm Flux Cored (Fitted), 0.8/0.9mm V Groove
• Contact Tip: 0.8mm (Fitted)
• Operating Manual

• Power Source Dimensions: H371mm x 205mm x 478mm
• Power Source Mass: 13.7 KG
• Fan Cooled
• Welder Type: Inverter
• Australian Standard AS 60974.1-2006 / IEC 60974-1
• Single Phase
• Nominal Supply Voltage 240V AC ± 15%
• Nominal Supply Frequency 50/60 Hz
• Open Circuit Voltage <35 • Factory Fitted Supply Plug Rating 10 Amps • Minimum Single Phase Generator Recommendation: 10 kVA @ 0.8 PF • Duty Cycle - MIG: 185A @10%, 23.3V - STICK: 160A @ 10%, 26.4V - TIG: 160A @ 20%, 16.4V • Protection Class IP21S

Additional information

Weight 5.8000 kg
