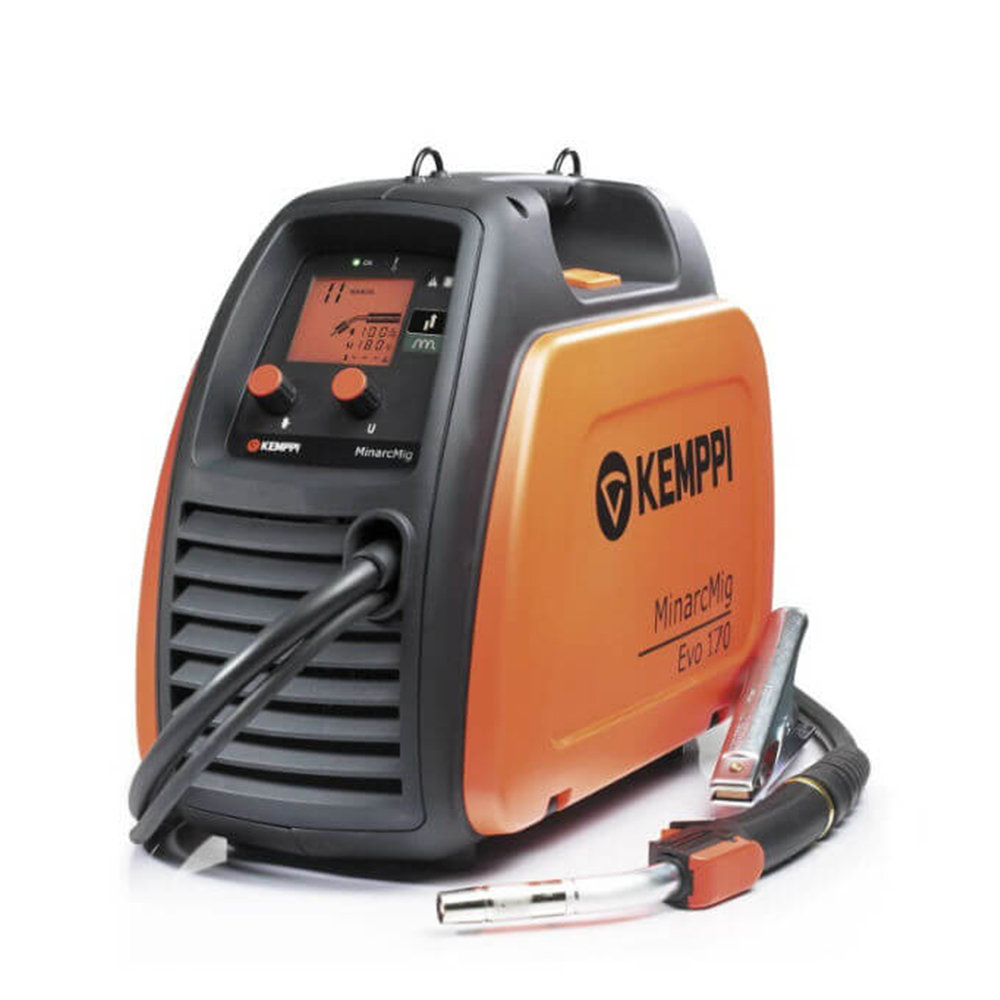

Kemppi Minarc Mig Evo 170 Single Phase Mig 170amp Compact & Portable Gas Cooled Mig

The Kemppi MinarcMig Evo 170 offers a manual setting with separate controls for voltage and wire feed speed. It features a large graphical interface guiding the user during set-up. Delivering 170Amps welding power at 35 % duty cycle from a 16 A, 1-phase mains supply. PFC power source technology offers the ultimate energy economy with a power factor of 0.99. MinarcMig Evo can also be used efficiently with extra long power supply cables of more than 100 meters long, allowing for optimum welding utility in site welding environments.

MACHINE PACKAGE:

Minarc Evo 170 Power source
MMG22 3m Mig Gun
Earth Cable
Gas Hose
Carrying Strap

Precise weld quality and arc ignition
170 A of MIG/MAG welding power from a 16 A supply
Choose either Automatic or Manual model
Use with Fe, Fe FCW, Ss, Al, CuSi filler wires, 1 kg and 5 kg spools
Large graphical display guides user
Designed for use with long supply cables of 100m and more
A 3-metre gun, cable set and carrying strap included
Suitable for mains network or generator use

Connection voltage 1~ 50/60 Hz: 230 V ±15%
Fuse (delayed): 16A
Minimum generator power: 4.2 kVA
Welding range: 20 A/15 V – 170 A/24 V
Output 35% ED: 170 A/24 V
Output 100% ED: 100 A/20 V
Open circuit voltage: 70-75 V
Operating temperature range: -20 – +40 °C
External dimensions LxWxH: 450 × 227 × 368 mm
Weight (no accessories): 13 kg
Degree of protection: IP23S
Standards IEC 60974-1, IEC 60974-5, IEC 60974-10, IEC 61000-3-12
Wire spool weight, max. 5 kg
Wire spool diameter, max. 200 mm

Weight	13.0000 kg
Dimensions	45 × 22.7 × 36.8 m
