HD Backlit Interface
Experience a new level of convenience with our next-generation
interface panel. With its vibrant and easy-to-read display, you’ll be
able to effortlessly navigate and customise your welding settings
in any lighting condition.
Synergic MIG Control
Say goodbye to complicated and time-consuming setup with our
innovative Synergic MIG control. This cutting-edge technology
automatically adjusts your welding settings based on your wire
type, gas, wire size, and material thickness, ensuring precise and
efficient results every time.
Digital Control MIG Torch
The ultimate solution for welders seeking unprecedented
control and precision in their work. No more hassle of constantly
adjusting your settings on a separate control panel. With our
leading technology, you can easily fine-tune your amps, wire
speed, and voltage right on the MIG torch itself.
Spool Gun Ready
You have the option of attaching a Spool Gun to run softer core
wires such as aluminium MIG wire. You don’t even need to
change the setup of your existing torch or drive roller.
Gas & Gasless MIG
Our welding machine supports both gas-shielded and gasless
MIG wire, allowing you to tackle a wide variety of welding projects
with ease. Whether you’re working with mild steel, stainless
steel, aluminium, or flux-cored wire, our machines have got you
Geared Wire Drive
Experience smooth and consistent wire feed with our advanced
geared roller drive unit. This feature ensures that your wire is fed
consistently and accurately, even when using longer MIG torches.
Get the job done quickly and efficiently with our versatile three-
in-one welding machine. With the ability to perform MIG, TIG, and
STICK welding all in one unit, you can save valuable time and
effort without sacrificing quality.
Foot Control Ready
Enjoy greater control and precision with our optional foot control
accessory. This handy feature allows you to easily adjust your TIG
amperage on the fly, without interrupting your torch movement.
Trigger Controlled DC Lift Arc TIG
With Trigger Controlled DC Lift Arc ignition, starting your welding
projects has never been easier. Our Lift Arc TIG technology
ensures that your tungsten tip won’t stick to the work piece,
preventing costly tip breakages.
Our advanced Smart Fan technology reduces noise, saves power,
and minimises contaminants, making it the perfect choice for any
Advanced MMA Features
The RAZOR MULTI 175/220 features adjustable Arc Force and
Hot Start functionality. These features are designed for improving
weld quality and ease of use.
Optional Remote Control
Upgrade your machine with a handy remote control. Both a wired
and wireless controller are available.
Minimum 11 kVA (175), or 12 kVA (220) recommended.

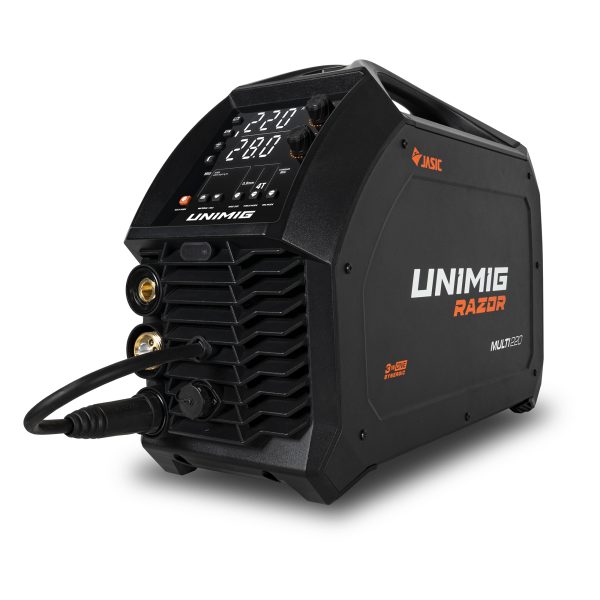

RAZOR MULTI 220
Primary Input Voltage 240V Single Phase
Supply Plug 15 AMP
Ieff (A) 14.7
Rated Output 30A/15.5V – 220A/25V
No Load Voltage (V) 60
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 12.0
Dinse Connector 35/50
Warranty (Years) 5
MIG Welding Current Range 30-220A
MIG Duty Cycle @ 40°C 15% @ 220A
60% @ 110A
100% @ 85A
MIG Welding Thickness Range 1-10mm
TIG Function Type DC Lift Arc
TIG Welding Current Range 5-220A
TIG Duty Cycle @ 40°C 15% @ 220A
60% @ 110A
100% @ 85A
TIG Welding Thickness Range 1-8mm
STICK Welding Current Range 20-180A
STICK Duty Cycle @ 40°C 15% @ 180A
60% @ 90A
100% @ 70A
STICK Welding Thickness Range 2-12mm
Size & Weight
Dimensions (mm) 560×220×400
Weight (kg) 15.1
Capable Welding Material Types By Welding Process
Mild Steel, Stainless Steel, Copper, Mild Steel, Stainless Steel, Cast Iron
Mild Steel, Stainless Steel, Aluminium,
SPOOL GUN CONNECTION
THERMAL OVERLOAD PROTECTION
Over Temperature Warning
