Description

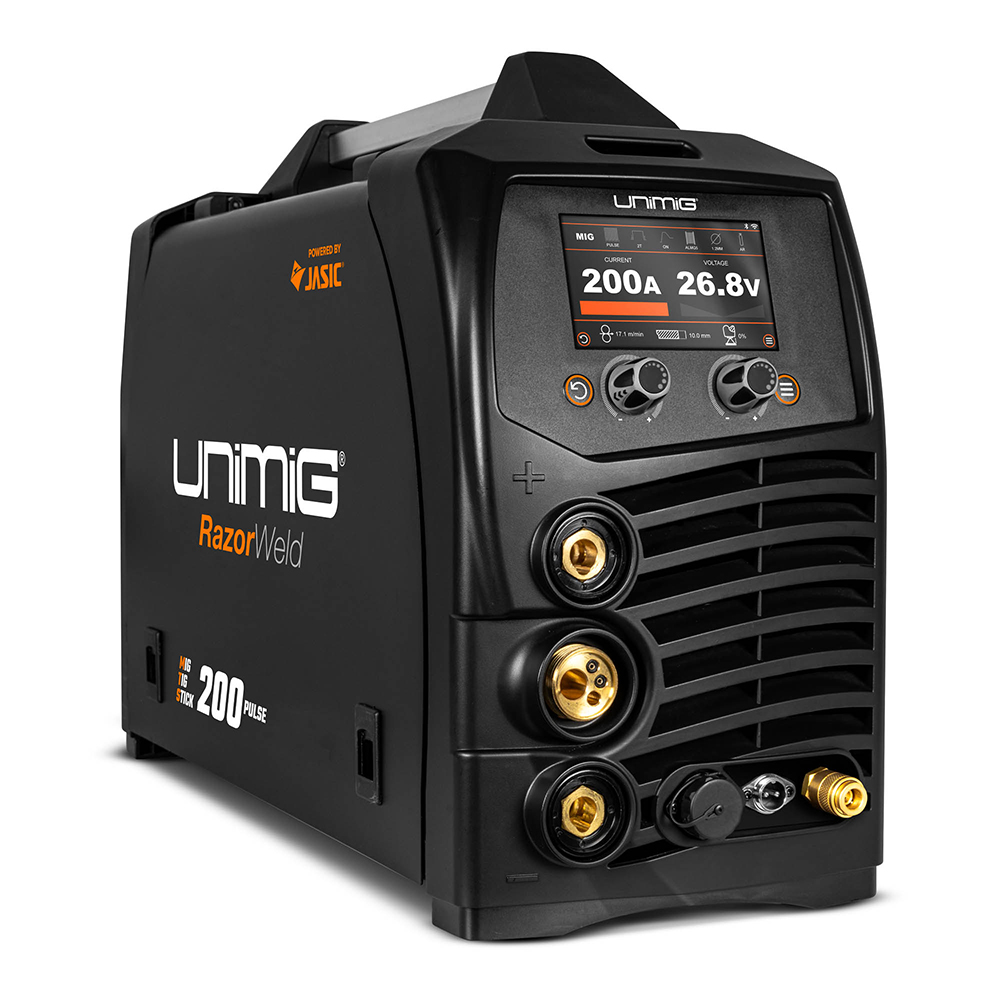

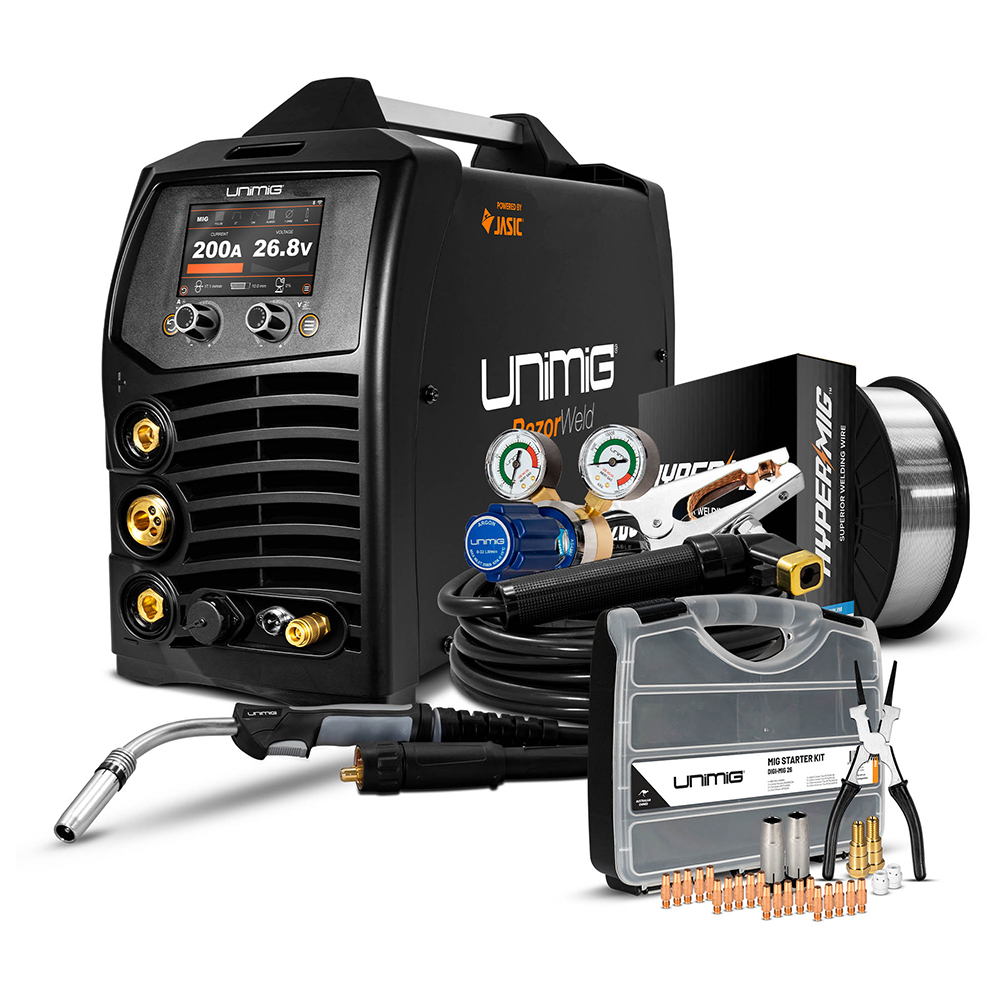

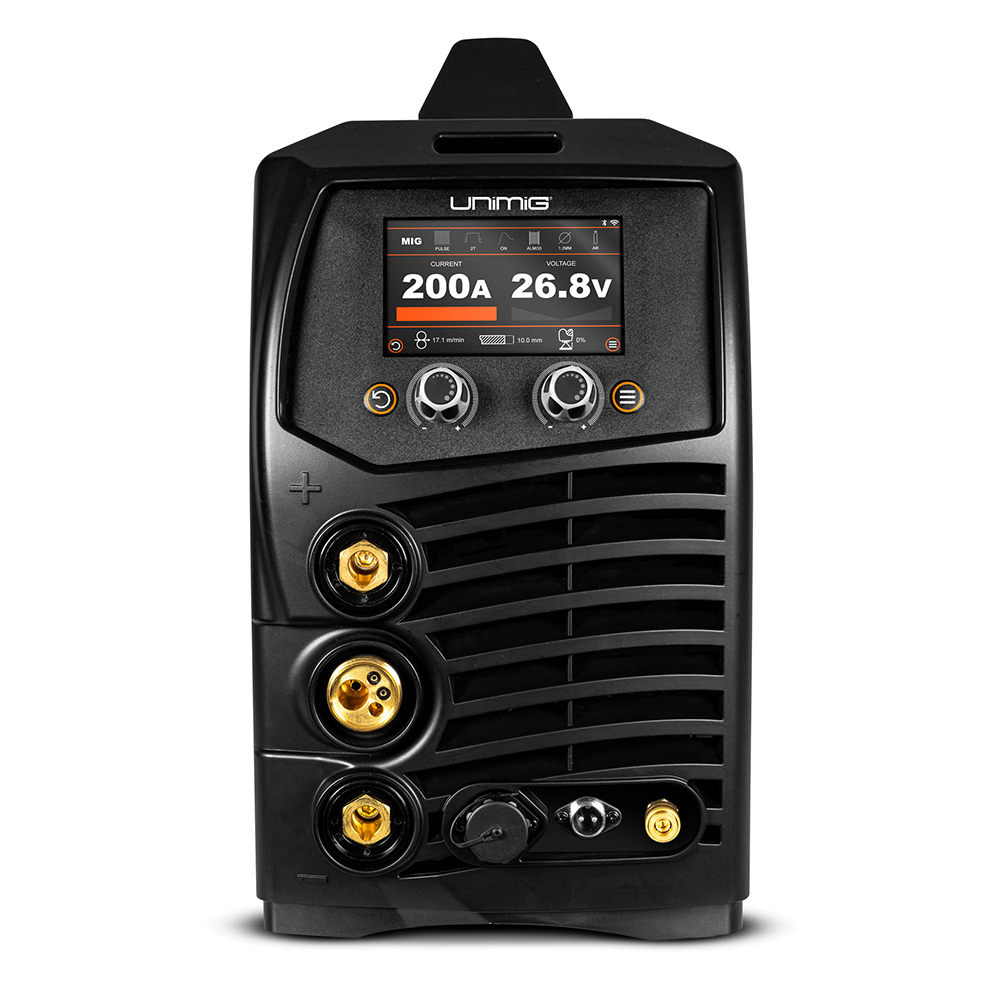

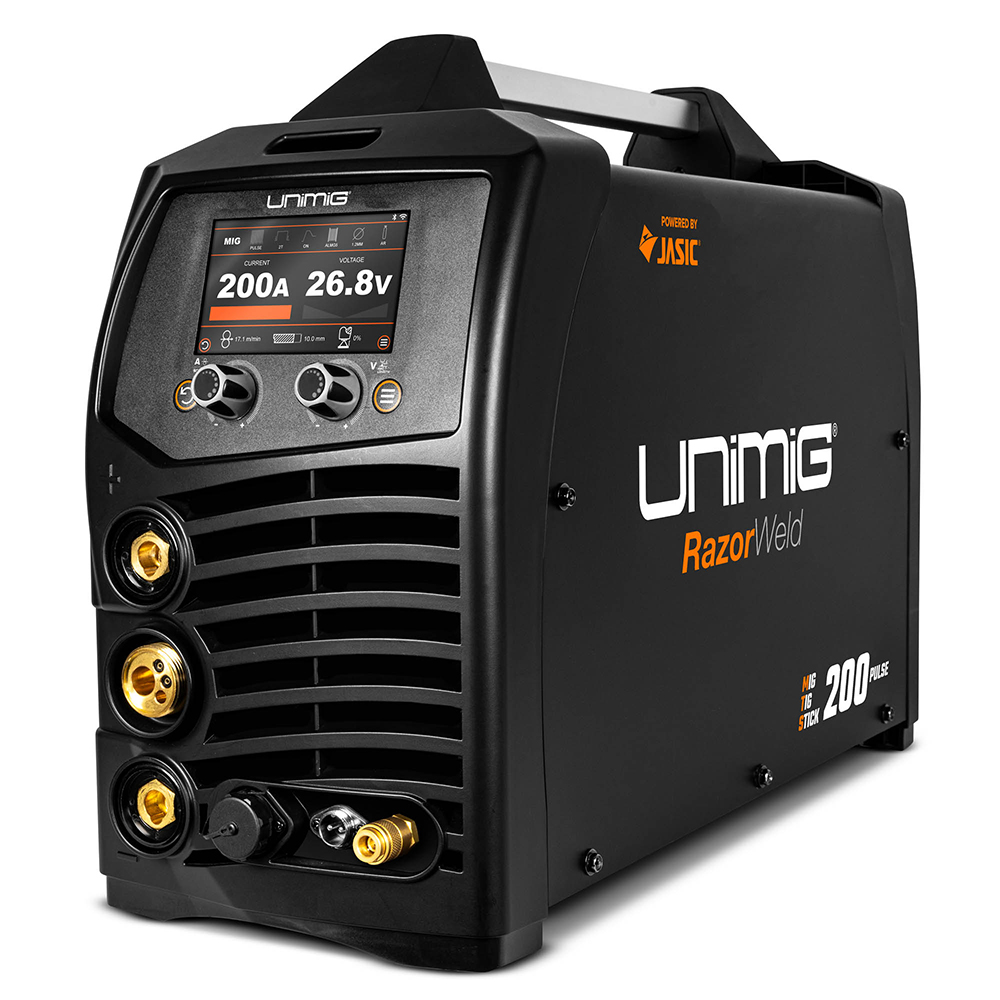

The all-new RAZOR 200 PULSE has arrived. As our latest innovation in pulse MIG, this machine comes filled with revolutionary technology across the board. Whether it’s MIG, pulse MIG, double pulse MIG, High Frequency TIG, pulse TIG or STICK – you name it, the RAZOR 200 PULSE can handle it. Get everything pulse MIG has to offer on a 15 amp plug.
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE 240V Single Phase
SUPPLY PLUG 15 AMP
Ieff (A) 14.9
RATED OUTPUT 40A/16V-200A/24V
NO LOAD VOLTAGE (V) 77
PROTECTION CLASS IP23S
INSULATION CLASS H
MINIMUM GENERATOR (kVA) 11.0
DINSE CONNECTOR 35/50
STANDARD AS/NZ60974-1
SUITABLE MATERIAL Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years) 3
MIG SPECIFICATIONS
MIG WELDING CURRENT RANGE 40-200A
MIG DUTY CYCLE @ 40°C 15% @ 200A, 60% @ 101A, 100% @ 78A
MIG WIRE SIZE RANGE 0.6-1.2mm
MIG WIRE SPOOL SIZE 100mm / 200mm
MIG WELDING THICKNESS RANGE 1-10mm
DRIVE ROLLER SIZE 30/22
TIG SPECIFICATIONS
TIG FUNCTION TYPE High-Frequency
TIG WELDING CURRENT RANGE 5-200A
TIG DUTY CYCLE @ 40°C 20% @ 200A, 60% @ 116A, 100% @ 90A
TIG WELDING THICKNESS RANGE 1-8mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE 20-180A
STICK DUTY CYCLE @ 40°C 15% @ 180A, 60% @ 91A, 100% @ 70A
STICK ELECTRODE RANGE 2.5-4.0mm
STICK WELDING THICKNESS RANGE 2-12mm
ARC FORCE 0-100%
SIZE & WEIGHT
DIMENSIONS (mm) 605x230x400mm
WEIGHT (kg) 17kg
MACHINE FEATURES
WIRE DRIVE 4 Geared
VRD Yes
BURNBACK ADJUSTMENT Yes
WIRE INCH Yes
INDUCTANCE CONTROL Yes
THERMAL OVERLOAD PROTECTION Yes
