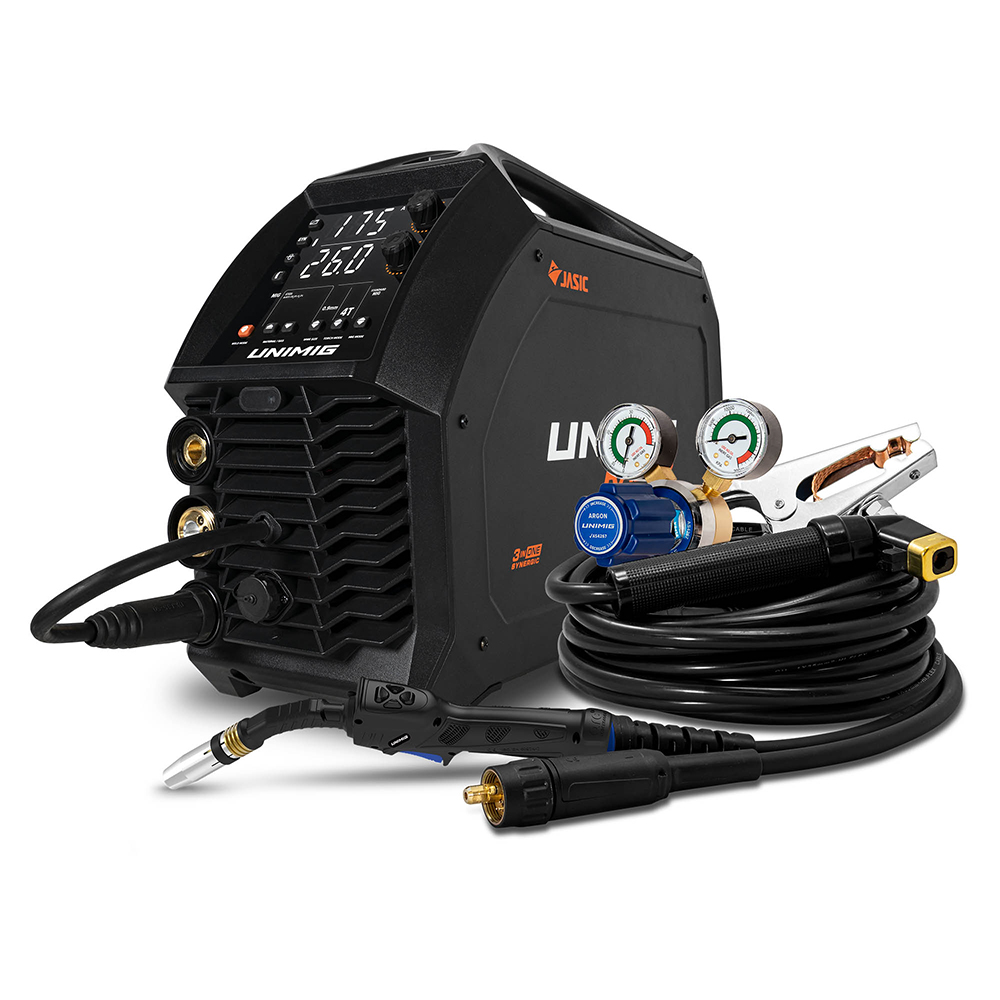

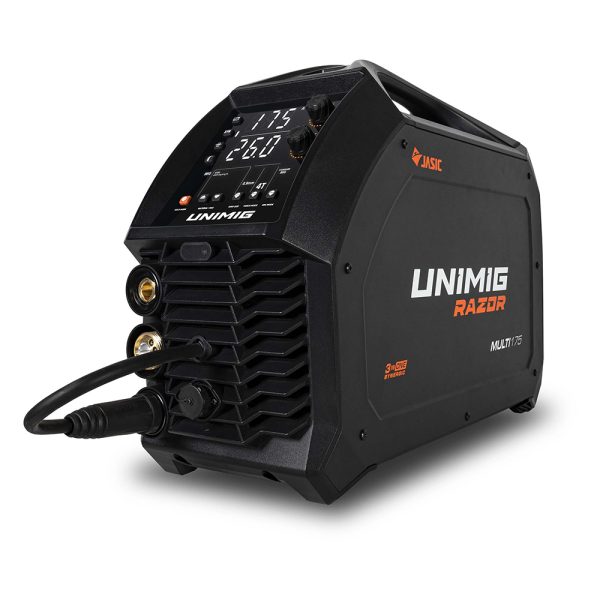

Unimig Razor Multi 175 240v/15amp

SKU U11007K Categories ,
Welding Guns

ADD TO QUOTE

Description

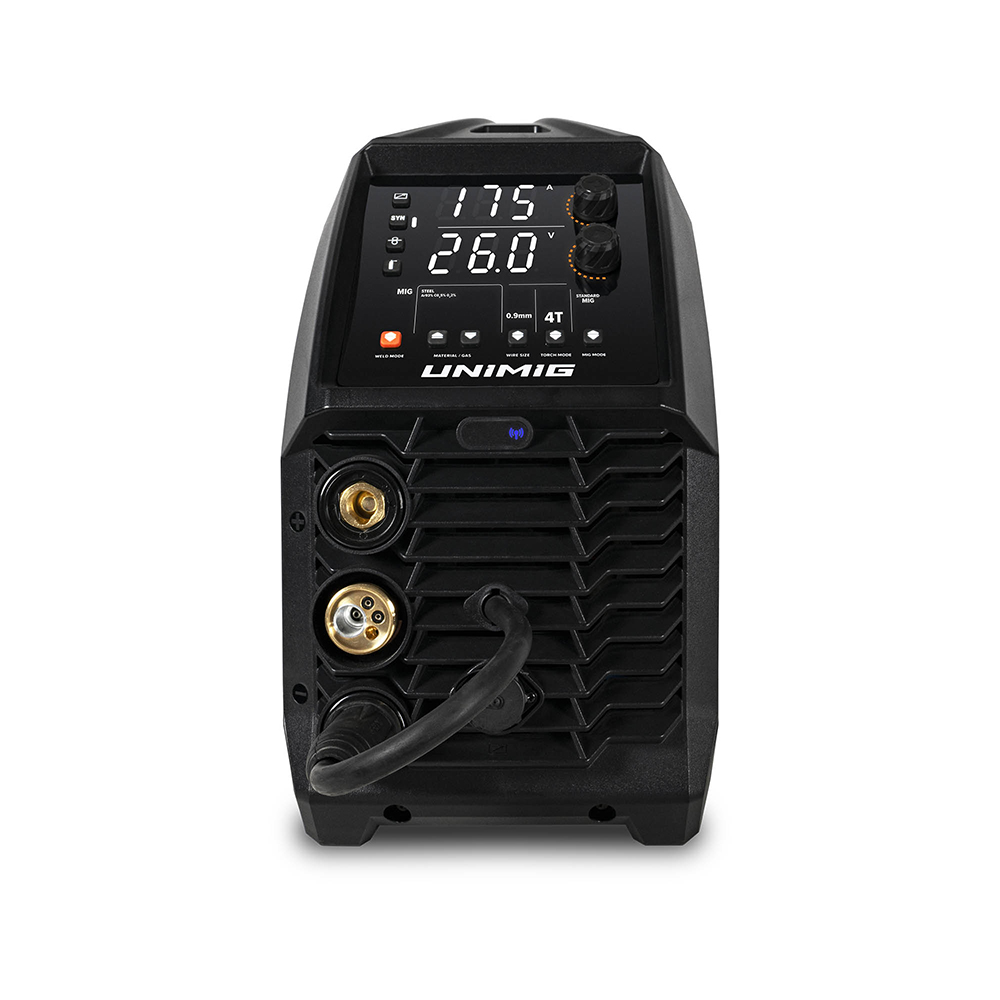

HD Backlit Interface
Experience a new level of convenience with our next-generation
interface panel. With its vibrant and easy-to-read display, you’ll be
able to effortlessly navigate and customise your welding settings
in any lighting condition.
Synergic MIG Control
Say goodbye to complicated and time-consuming setup with our
innovative Synergic MIG control. This cutting-edge technology
automatically adjusts your welding settings based on your wire
type, gas, wire size, and material thickness, ensuring precise and
efficient results every time.
Digital Control MIG Torch
The ultimate solution for welders seeking unprecedented
control and precision in their work. No more hassle of constantly
adjusting your settings on a separate control panel. With our
leading technology, you can easily fine-tune your amps, wire
speed, and voltage right on the MIG torch itself.
Spool Gun Ready
You have the option of attaching a Spool Gun to run softer core
wires such as aluminium MIG wire. You don’t even need to
change the setup of your existing torch or drive roller.
Gas & Gasless MIG
Our welding machine supports both gas-shielded and gasless
MIG wire, allowing you to tackle a wide variety of welding projects
with ease. Whether you’re working with mild steel, stainless
steel, aluminium, or flux-cored wire, our machines have got you
covered.
Geared Wire Drive
Experience smooth and consistent wire feed with our advanced
geared roller drive unit. This feature ensures that your wire is fed
consistently and accurately, even when using longer MIG torches.

Multi-Process Welding

Get the job done quickly and efficiently with our versatile three-
in-one welding machine. With the ability to perform MIG, TIG, and

STICK welding all in one unit, you can save valuable time and
effort without sacrificing quality.
Foot Control Ready
Enjoy greater control and precision with our optional foot control
accessory. This handy feature allows you to easily adjust your TIG
amperage on the fly, without interrupting your torch movement.
Trigger Controlled DC Lift Arc TIG
With Trigger Controlled DC Lift Arc ignition, starting your welding
projects has never been easier. Our Lift Arc TIG technology
ensures that your tungsten tip won’t stick to the work piece,
preventing costly tip breakages.
Smart Fan
Our advanced Smart Fan technology reduces noise, saves power,
and minimises contaminants, making it the perfect choice for any
welding environment.
Advanced MMA Features
The RAZOR MULTI 175/220 features adjustable Arc Force and
Hot Start functionality. These features are designed for improving
weld quality and ease of use.
Optional Remote Control
Upgrade your machine with a handy remote control. Both a wired
and wireless controller are available.
Generator Compatible
Minimum 11 kVA (175), or 12 kVA (220) recommended.

RAZOR MULTI 175
SPECIFICATIONS
Technical Data
Parameter Values
SKU U11007K
Primary Input Voltage 240V Single Phase
Supply Plug 15 AMP
Ieff (A) 15
Rated Output 30A/15.5V – 175A/22.8V
No Load Voltage (V) 60
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 11.0
Dinse Connector 35/50
Standard AS/NZ60974-1
Warranty (Years) 5
MIG Specifications
MIG Welding Current Range 30-175A
MIG Duty Cycle @ 40°C 25% @ 175A
60% @ 101A
100% @ 78A
MIG Welding Thickness Range 1-8mm
TIG Specifications
TIG Function Type DC Lift Arc
TIG Welding Current Range 5-175A
TIG Duty Cycle @ 40°C 25% @ 175A
60% @ 113A
100% @ 88A
TIG Welding Thickness Range 1-6mm
STICK Specifications
STICK Welding Current Range 20-160A
STICK Duty Cycle @ 40°C 20% @ 160A
60% @ 93A
100% @ 72A
STICK Welding Thickness Range 2-10mm
Size & Weight
Dimensions (mm) 560×220×40
Weight (kg) 15.0

Capable Welding Material Types By Welding Process

Mild Steel, Stainless Steel, Copper, Mild Steel, Stainless Steel, Cast Iron
Silicon Bronze

Mild Steel, Stainless Steel, Aluminium,
Silicon Bronze

Additional information

Weight 15.0000 kg
Dimensions 56 × 22 × 40 m
