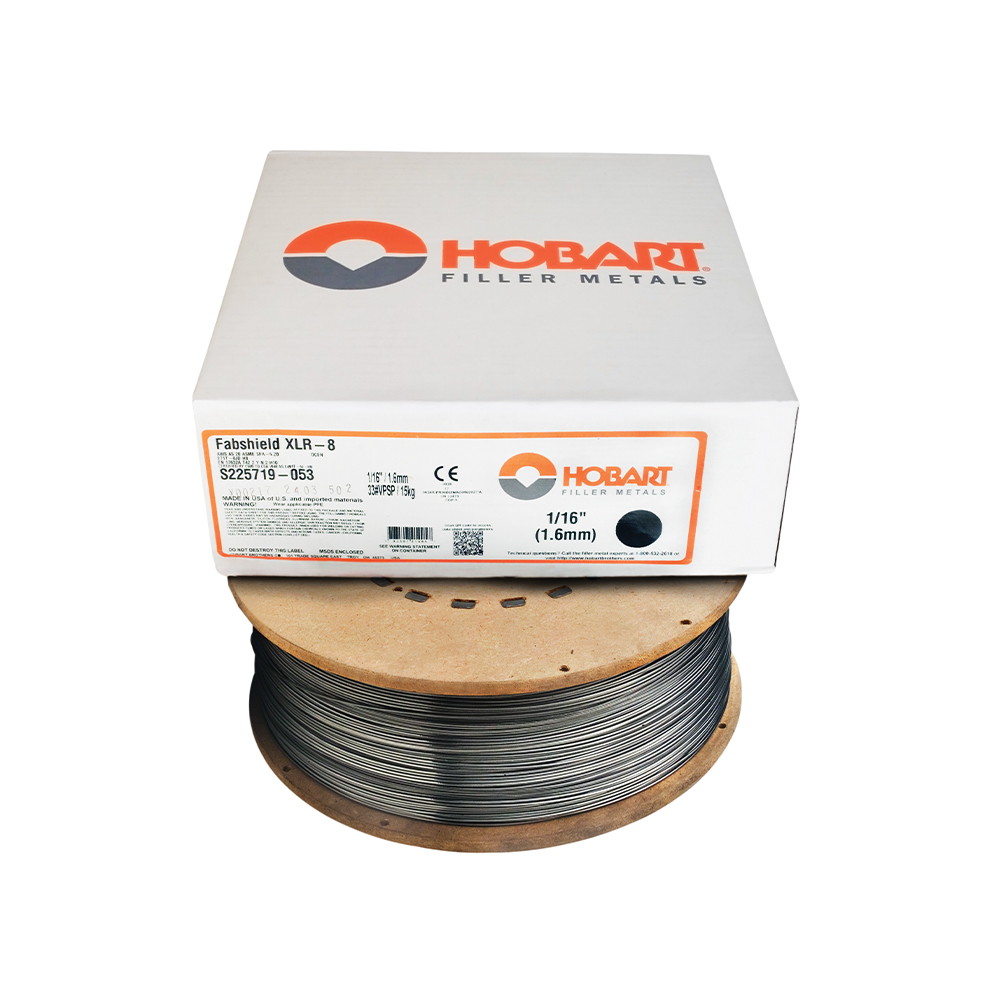

WIA Fabshield XLR8-H8 1.6mm Self Shielded Flux Cored Mig Wire VP E71T-8JD H8

SKU S225719-053 Categories ,

New sealed poly package with a VCI (Vapour Corrosion Inhibitor) coating
•Superior rust and corrosive protection
•Easy To Open
•Environmental friendly disposal

Description
Low hydrogen T-8 self-shielded, all positional flux cored wire, producing a stable arc and flat bead profile, especially suited for vertical-up welds at high currents with excellent mechanical properties and a tensile strength of 490 MPa.
Capable of depositing X-ray quality welds, making it highly suitable for critical welding applications requiring a high degree of crack resistance due to its low diffusible hydrogen levels, less than 6.7ml per 100g of weld metal deposited.
XLR-8 has been designed for single and multi-pass welding applications with improved productivity in out-of-position welding, offering high impact strength of 42J at sub zero temperatures to -40°C.
Typical Applications
Specifically designed for increased productivity and high deposition rates on challenging structural steel erection, heavy equipment repair, mining equipment, bucket repairs, storage tanks, pipe spooling, ship construction and site work applications.

Classification
AS/NZS IS0 17632-B – T492T8-1NA-U H10
AWS A5.20: E71T-8JD H8

Specifications
Typical All Weld Metal Chemical Analysis
C Mn Si P S AI Fe
0.19 0.51 0.17 0.009 0.006 0.51 Bal

Typical All Weld Metal Mechanical Analysis
Yield Strength Tensile Strength Elongation CVN Impact Values
469 MPa 579 MPa 28% 68J @ -20ºC
54J @ -30ºC
42J @ -40ºC

Weight 15.0000 kg
Dimensions 30 × 30 × 10 cm
