Description

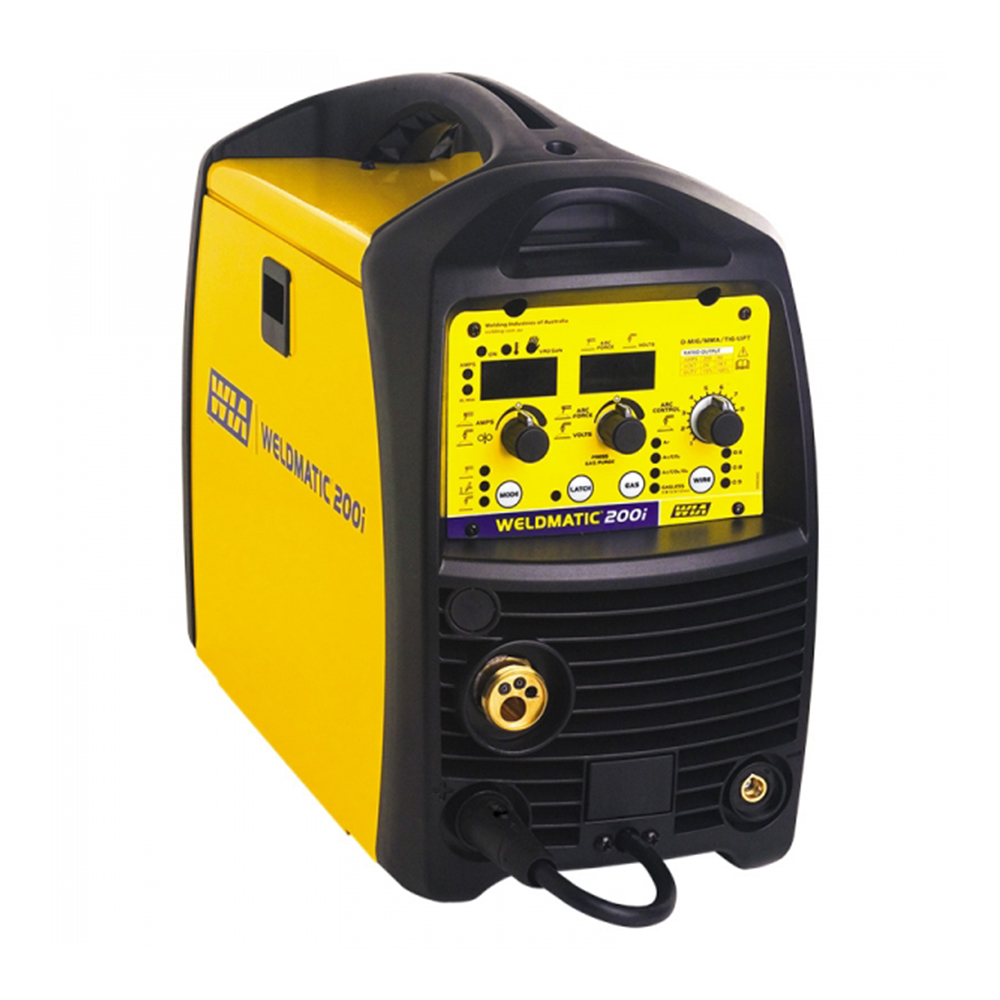

Weldmatic 200i. Single phase, multi-process inverter capable of handling MIG, Stick and Lift-TIG processes. With 200A of MIG, 170A of Stick and 200A of Lift-Arc capability, the Weldmatic 200i suits a wide range of applications – from fencing jobs to construction sites. Built in VRD delivers added safety when operating in Stick or Lift-TIG mode and meets the requirements of site work. Fully compliant to Australian Standards AS 60974.1 & AS1674.2 CAT C.
Features:
• 200 Amp DC TIG
• 170 Amp Stick Welder
• 200 Amp MIG
• Compact, lightweight design
• 15amp Supply plug
Package Includes:
• Euro Gun Cable (3m)
• Work Lead (3m)
• Industrial Twist Lock Electrode Holder (3m)
• Gas Regulator
• Drive Rollers 0.6/0.8mm ‘v’ groove; 0.9/1.2mm knurled (gasless)
• Tips (0.6/0.8/0.9/1.2mm)
• ES6 Sample Wire (0.8mm)
Technical Data
• Primary Voltage: 240 Vac – 50/60 Hz
• Rated Primary Current: 14 Amps
• Max. Primary Current: 36 Amps
• Recommended Generator kVa: 10 kVA
• Supply Plug: 15 Amps
• Rated Output @ 40C (10min): 200 Amps @ 24.5 Volts 15%, 77 Amps @ 17.9 Volts 100%
• Welding Current Range: 30 – 200 Amps
• Wire Size Range (mm): 0.6 – 0.9 solid, 0.8 – 1.2 cored, 1.0 aluminium
• Machine Weight: 13kg
• IP Rating: IP21S
